Excavator Bucket

Bucket Category,Capability and Appropriate Working Environment

Parameter

Type

Material
Configuration and capability
Appropriate Working Environment
GP Bucket
Q345B
Standard plate thickness,homemade high quality tooth plate
For digging clay, or loading the sand,mud and gravel.
Heavy Duty Bucket

Q345B+NM360

Adaptor plate and side plate are made of homemade material NM360,homemade material high quality tooth plate,so that it can resist grinding and bending.
For digging the rubble,gravel and clay with tough stone, or loading the secondary tough stone and rock.
Rock bucket
HARDOX500+Q345B
Consolidated plate on the bottom,enhance the thickness of side plate,and install protective board,the tooth plate is made of HARDOX Which is specialized for rock,so that it can resist grinding and bending efficiently
For loading the tough rock and the mineral from the explosion.

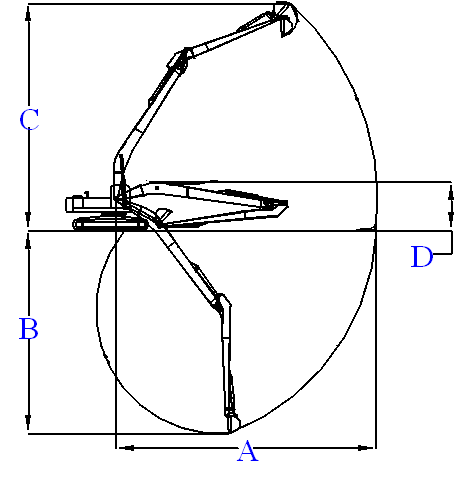

Technical Parameter For Long Reach Boom

Excavator Operating Weight(Ton)

Parameter

12T
20T
22T
30T
35T
40T
45T
Total Length of Boom&Arm
13000
153800
153800
18000
20000
22000
24000
Weight(KG)
3000
4000
4200
5200
6000
6500
7000
Bucket capacity(M3)
0.3
0.4
0.4
0.4
0.5
0.6
0.6
C Max. Digging Height(mm)
11300
12510
12610
13720
14920
16100
17300
A Max. Forward Reach (mm)
12500
15100
15100
17600
19600
21600
23600

B Max. Digging Depth(mm)

9000
113400
11370
13000
15000
16500
18000

D Overall Height(mm)

2900
2980
3040
3210
3210
3400
3400
