Products

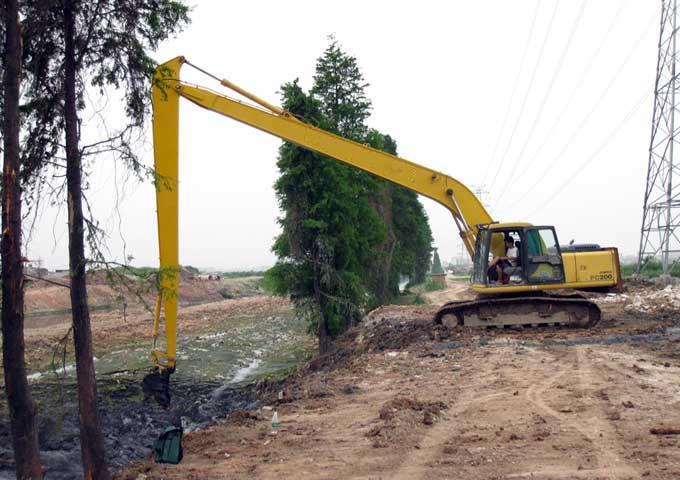

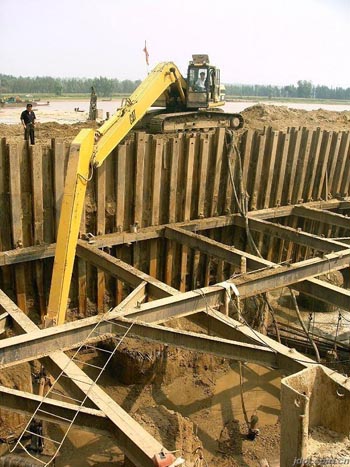

Application: ideal solution for river and sea dredging either on land or barge, pond excavation and maintenance, deep foundation excavation, drainage construction, distant digging, etc.

Warranty Period: 6 months at normal working condition

Workmanship:

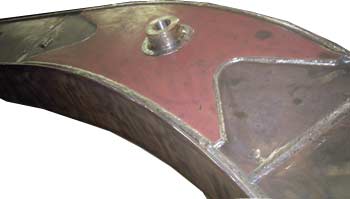

Considerable improvement has been made with reasonable selection of materials and thickness after analysis of stress concentration part through FEM with the help of CAD system. The inside buffer plate is to support tensile load, which prolongs the service life of excavators. Ultrasound wave inspection is applied to check faultywelding points during the inspection period of assembly line. In order to further confirm the machine reliability, extensive jobsite operating trials have been conducted.We also can design various kinds of extension jibs according to customers requirements.

Application Excavator Model:KOMATSU,HITACHI, CATERPILLAR,SUMITOMO, HYUNDAI, KOBELCO, KATO, SANY, DAEWOO,VOLVO etc.

1, CAT170, CAT110, CAT200, CAT240, CAT320,CAT336, CAT345, CAT385, and CAT330,CAT365
2, PC60, PC100, PC120, PC200, PC300, and PC400
3, EX60, EX100, EX240LC-3, EX330,EX350LC-3, EX200, EX220, EX230, EX850LC, EX360, EX450LC, EX650LC, EX1200-6,EX1900-6
4, SK60,SK100, SK230,SK300,SK120,SK200,SK220,SK350,SK400



  • 1x Boom
  • 1x Stick/Arm
  • 1x Bucket
  • 1x Bucket Cylinder
  • 6x Pins
  • 4x hoses
  • 1x Set of Linkage

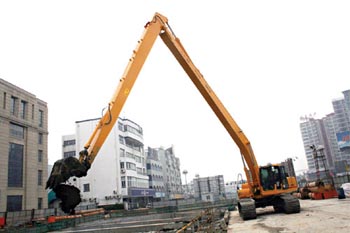

Technical Parameter For Long Reach Boom

Excavator Operating Weight(Ton)

Parameter

12T
20T
22T
30T
35T
40T
45T
Total Length of Boom&Arm
13000
153800
153800
18000
20000
22000
24000
Weight(KG)
3000
4000
4200
5200
6000
6500
7000
Bucket capacity(M3)
0.3
0.4
0.4
0.4
0.5
0.6
0.6
C Max. Digging Height(mm)
11300
12510
12610
13720
14920
16100
17300
A Max. Forward Reach (mm)
12500
15100
15100
17600
19600
21600
23600

B Max. Digging Depth(mm)

9000
113400
11370
13000
15000
16500
18000

D Overall Height(mm)

2900
2980
3040
3210
3210
3400
3400
